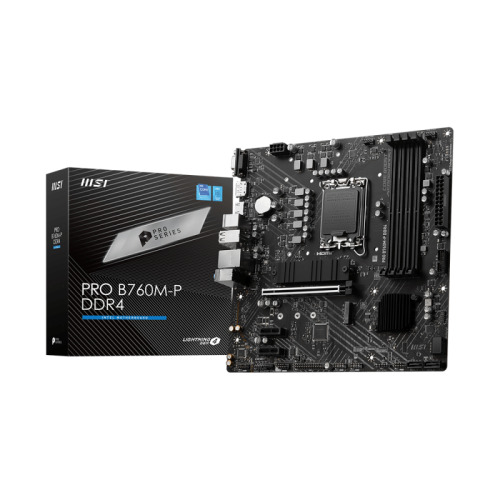

MSI PRO B760M-P DDR4 mATX Motherboard

Out Of Stock

MSI PRO B760M-P DDR4 mATX Motherboard

Stock: Out Of Stock
Product id: 3359
Brand: MSI
Model: PRO B760M-P DDR4

Based on 0 reviews. - Write a review

Model: PRO B760M-P DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 4800(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN

View more info

Specification
Review

Specification

Motherboard Basic Info
PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Form Factor	mATX 243.84mmx243.84mm
Motherboard Basic Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Motherboard Memory Info
Slots	4
Supported Memory	4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Motherboard Memory Info
Type	DDR4
Connectivity
Display Port	1x DisplayPort
VGA	1x VGA
Motherboard Graphics Info
Graphics	1x HDMI 1x DisplayPort 1x VGA Support HDMI 1.4, maximum resolution of 4K 30Hz Support DP 1.4, maximum resolution of 4K 60Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports (MB)
HDMI	1x HDMI
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A
Supported Storage	x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Review

What is the price of MSI PRO B760M-P DDR4 mATX Motherboard in Bangladesh?

The MSI PRO B760M-P DDR4 mATX Motherboard is Out Of Stock now. You can buy the MSI PRO B760M-P DDR4 mATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: MSI PRO B760M-P DDR4 mATX Motherboard Price in BD
